This fan offers simply unsurpassed levels of comfort and control. The power of the individually tiltable side fans can be adjusted from a gentle to a very strong breeze. Gently sweep the room or stop the rotation of the center rotor to direct the air stream right where you need it via remote control as you relax in your easy chair. Choose an indoor or an indoor/outdoor model. Design: Mark Gajewski, G Squared×
GYRO CEILING FAN SPECIFICATIONS:
42″ total maximum sweep
1000-1500 rpm side fan speeds
Side fan heads independently adjustable
Fan assembly rotates at 3 rpm, rotation can be stopped
Integrated LED bulb, T5, 450 lumen

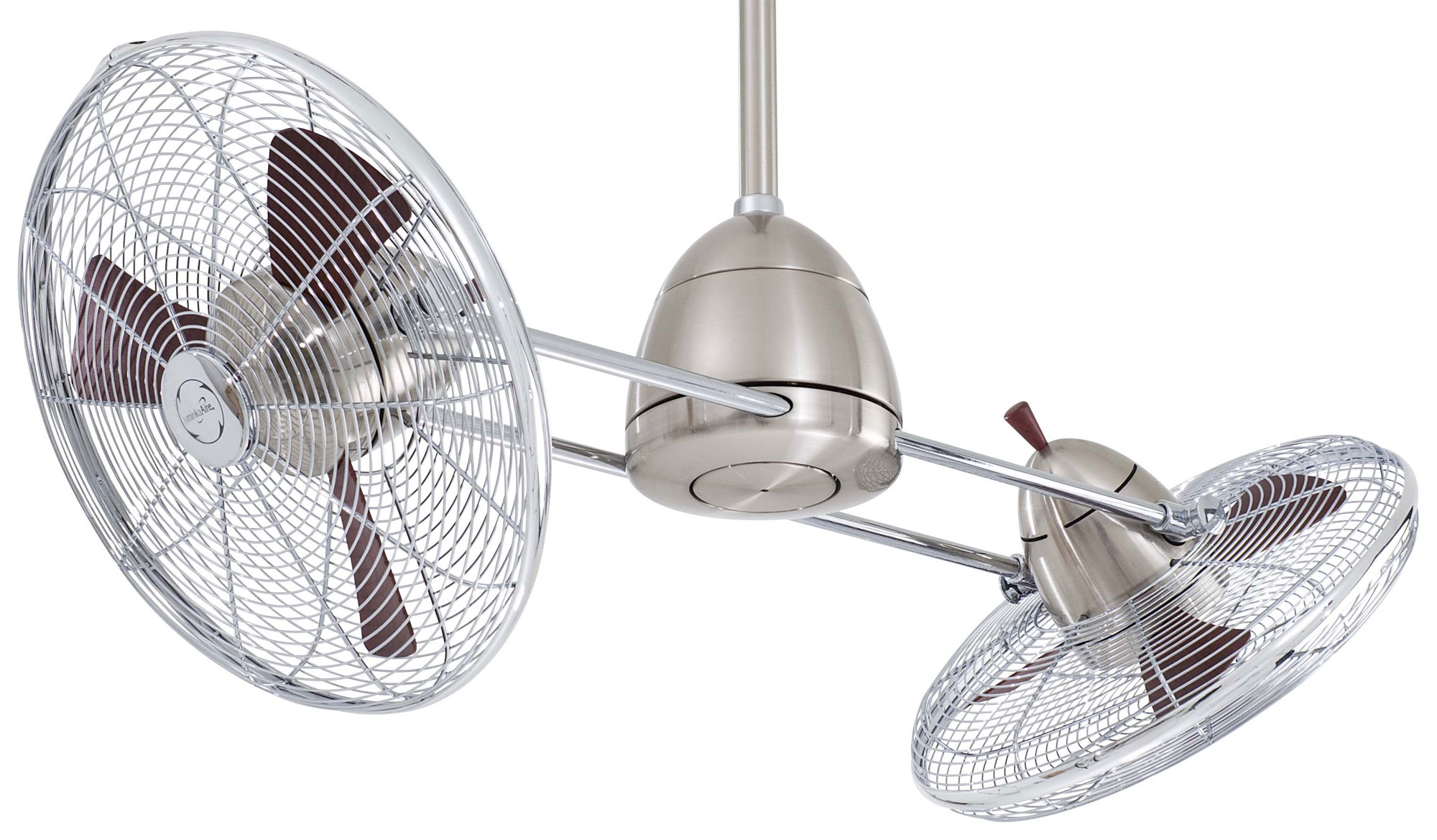

Cap for non-light use included
Lifetime warranty on motor, 1 year on rest of fan
Sloped ceilings OK up to 29 degrees without adapter
Sloped ceilings up to 45 degrees OK with accessory adapter available at additional cost
UL listed for indoor use, separate model F402 is indoor/outdoor Gyro which is UL listed for wet location use

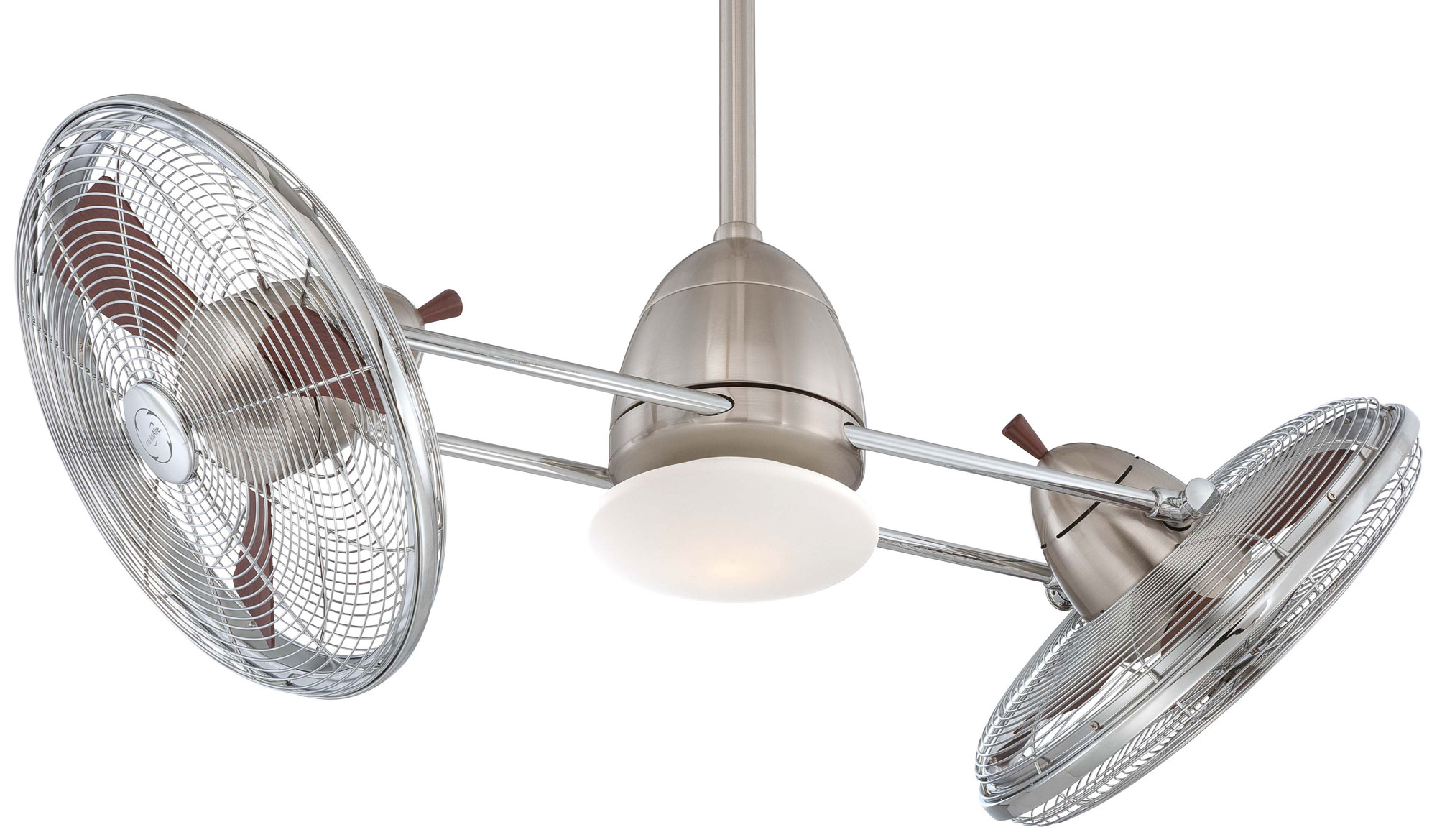

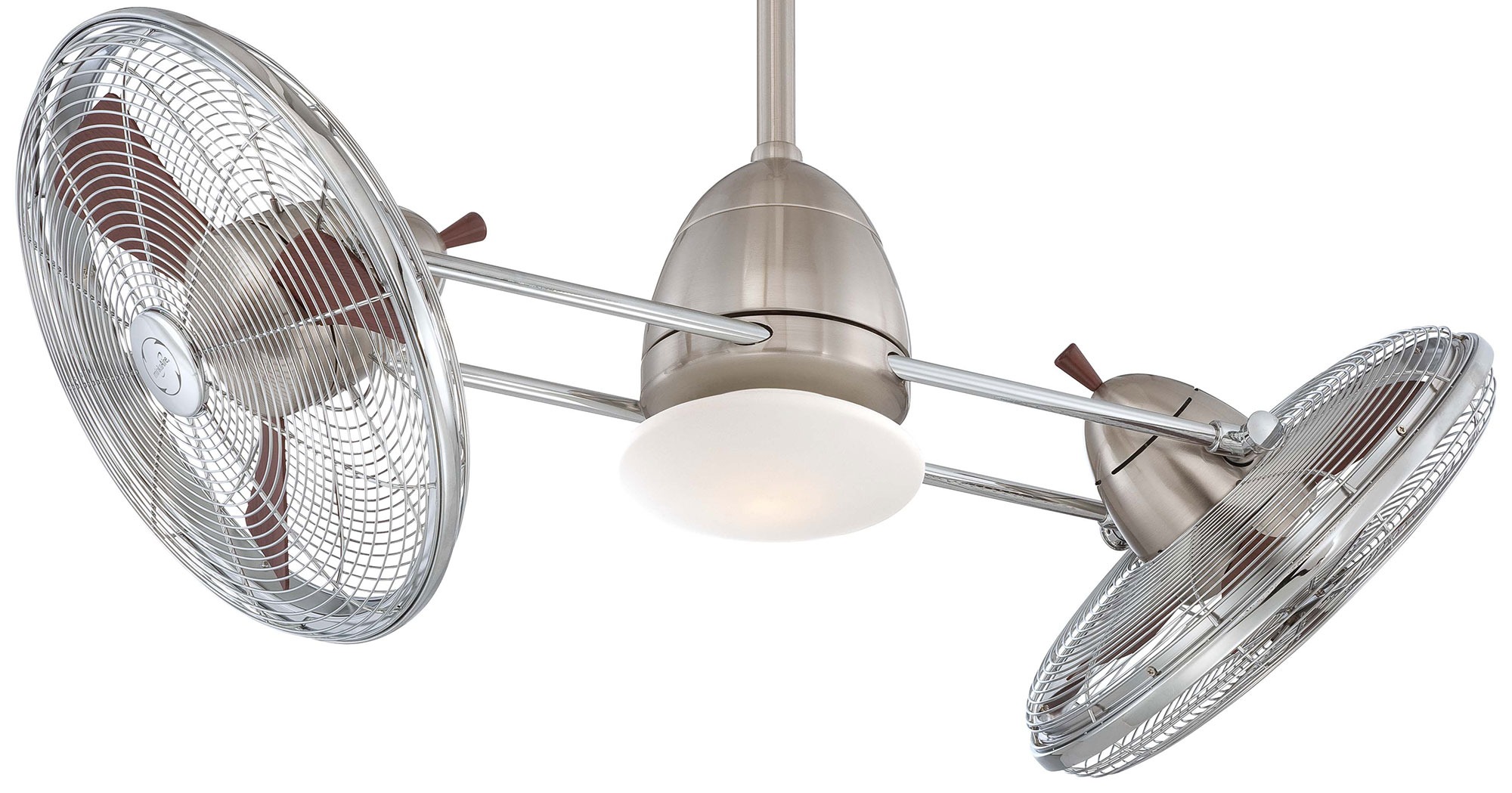

F602-BN/CH brushed nickel with chrome accents and cages

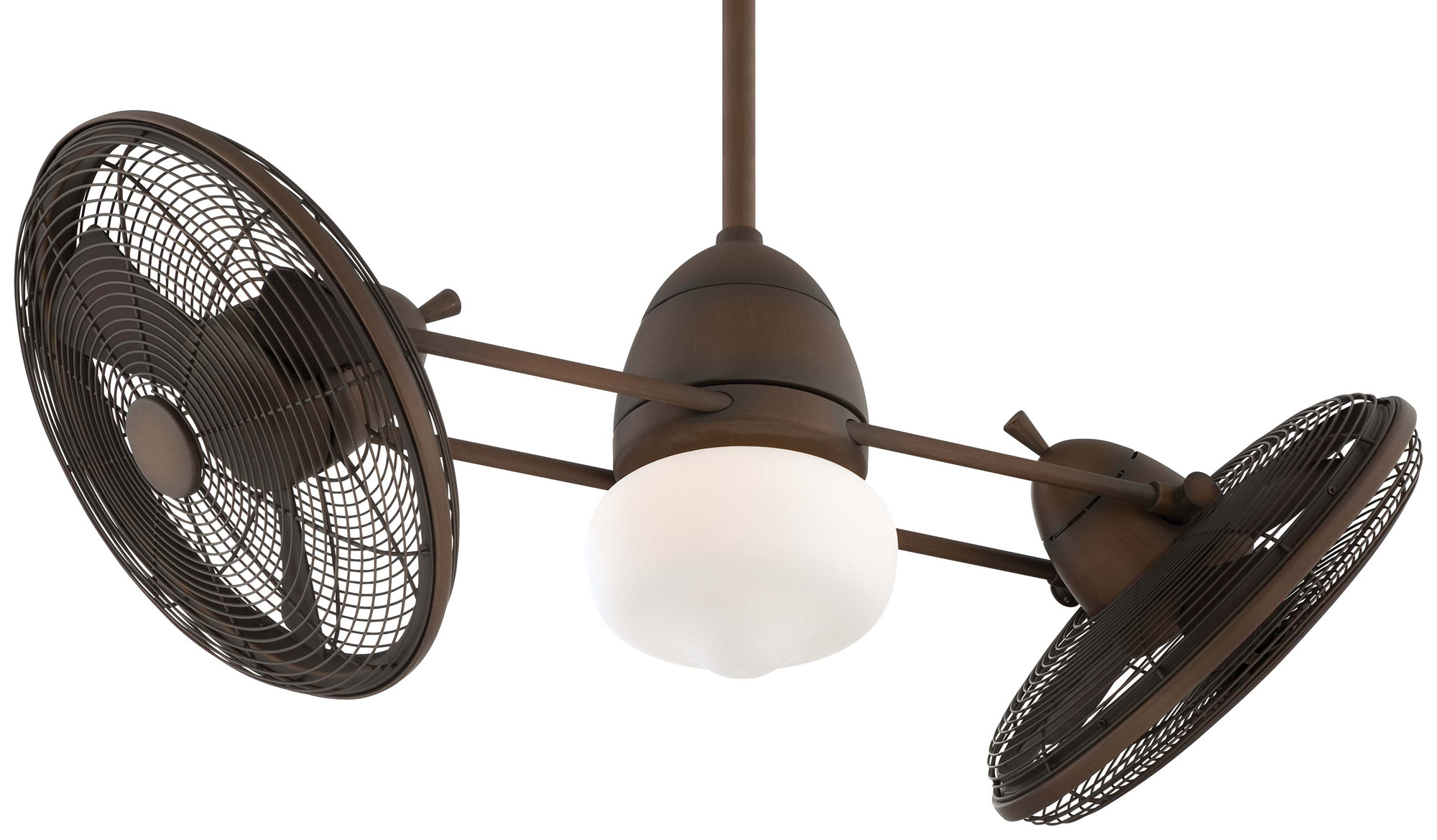

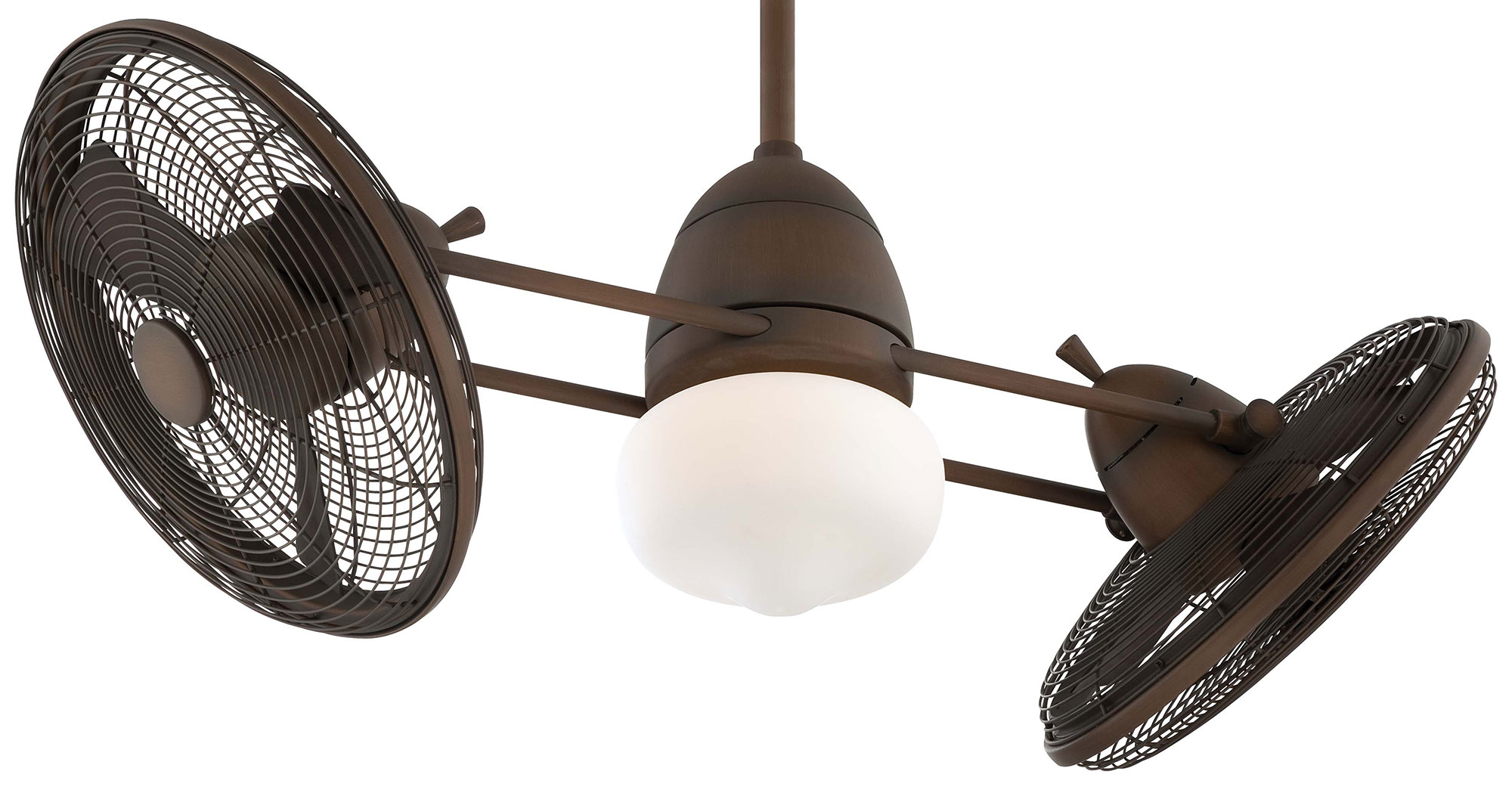

F602-RRB restoration bronze with schoolhouse globe light
Wall mount touch control included – incorporating fully independent fan head and axis rotation speeds plus infinite dimmer for light; fits in Decora sized wall plate
Hand held remote available at additional cost – can be used along with wall switch or alone (without need to install wall switch)
Both wall mount and hand held controls work by sending radio frequency signals to receiver in fan – no need for third wire when wiring for fan
Fan comes standard with 3 1/2″ and 6″ downrods—length to bottom of fan is 15 5/8″ with 3 1/2″ downrod and 18 1/8″ with 6″ downrod.
Accessory downrods are available at additional cost in 12″, 18″, 24″, 36″, 48″, 60″, and 72″ lengths.
Airflow 5050 CFM, Energy usage is 102 Watts, Airflow efficiency is 57.15 CFM/Watt on high speed
– Fan with blades as shown in picture
– 3 1/2″ and 6″ downrods
– Removable light kit as shown with bulb, T5 LED, E11 base
– Matching cap for non-light use
– Touch control wall switch for on/off, 3 fan speeds plus reverse,
fan mounting rotation control, and dimmer for light
View our diagram to find the downrod that matches your ceiling height.
Click here for downrods or scroll down this page.
Such as sloped ceiling adapters, additional control units or additional blades.
Click here for accessories or scroll down this page.
Please use this diagram as an approximate guide. Select optional downrods for 9 foot and higher ceilings.
This fan comes with 3 1/2 inch and 6 inch downrods included in the box. These downrods are suitable for 8 foot ceilings.
For safety reasons please be sure that the distance from the floor to the blades is at least 7 feet.
The hand held remote will operate the fan independently of the wall switch: if you choose it the wall switch will not have to be installed.
If your ceiling slope is greater than 30 degrees but less than 45 degrees you will need the slope adapter to install the fan.
